Type:2015425105811
Material : Cast iron Stainless steel
Inet diameter：25~400mm
Outlet diameter：Max 500mm
Flow：8~1800 m3/h
Operating temperature：<=60°
Solid particles：Max 250mm
Work permit pressure：<=3par
Allow experimental pressure：<=3.5par
排污泵概述
排污泵是一种泵与电机连体，并同时潜入液下工作 的泵类产品，可以输送各种生活污水、工业废水、建筑工地排水、液状饲料等等。在市政工程、工业、医院、建筑、饭店、水利建设等各行各业中起着十分重要的作用。浙江欧森泵业有限公司是一家专业生产：潜水排污泵、无堵塞排污泵、悬臂式离心污水泵、液下式排污泵、管道排污泵、立式排污泵的排污泵厂家。公司管理和技术力量雄厚，不断地开发研究和制造新一代系列排污泵，以适应各行业的需求。

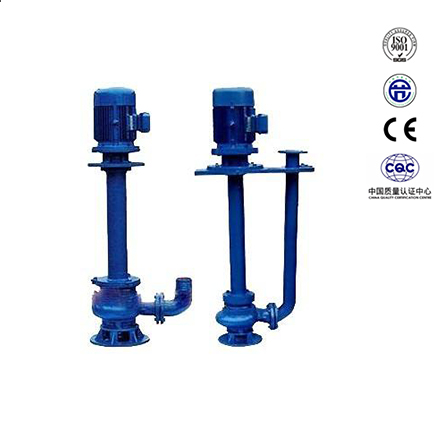

一、YW液下式无堵塞排污泵型号意义：
二、YW排污泵主要用途:
YW排污泵适用于化工、石油、制药、采矿、造纸工业、水泥厂、炼钢厂、电厂、煤加工工业，以及城市污水处理厂排水
系统、市政工程、建筑工地等行业输送带颗粒的污水、 污物，也司用于抽送清水及带腐蚀性介质。浙江排污泵厂家
浙江欧森泵业造有限公司欢迎新老用户选购。
三、YW排污泵产品简介
YW排污泵是在引进国外先进技术的基础上，结合国内水泵的使用特点而研制成功的新一代泵类产品，具有节能效果
显著、防缠绕、无堵塞、自动安装和自动控制等特点。在排 送固体颗粒和长纤维垃圾方面，具有独特效果。YW排污泵
采用独特叶轮结构和新型机械密封，能有效地输送含有固体物和长纤维。叶轮与传统叶轮相比，该排污泵泵叶轮采用单
流道或双流道形式，它类似于一截面大小相同 的弯管，具有非常好的过流性，配以合理的蜗室，使得该泵具有效率高、
叶轮经动静平衡试验，使泵在运行中无振动。
四、YW排污泵产品特点
1．采用独特的单片或双叶片叶轮结构，大大提高了污物通过能力，能有效的通过泵口径的5倍纤维物质与直径为泵口径
约50％的固体颗粒。
2． YW排污泵机械密封采用新型硬质耐腐的钛化钨材料，可使泵安全连续运行8000小时以上。
3．YW排污泵整体结构紧凑、体积小、噪声小、节能效果显著，检修方便，无需建泵房，潜入水中即可工作，大大减少工
程造价。
4、排污泵结构紧凑，体积小，移动方便，安装简单。
5、可配备液位自动控制柜，根据所需的液位变化，自动控制泵的起停，无需专人看管，使用极为方便。
6、排污泵为立式结构，工作时泵体浸在液体中因而很容易起动，不存在排气抽空问题，同时具有无泄漏等特点，液下深
度可达15米。
7、接轴结构先进可靠，泵与电机采用连轴器联结，泵轴尺寸精密，保证了泵平稳运行，留有足够的安全系数。
8、泵有单管安装和双管安装两种，支承件有圆盘和方盘安装，适合不同需要。
Pump removal and installation
(1), NL mud pump disassembly
1. Disassemble the electric raft or the fixed plate and the outlet pipe.
2. Remove the volute and the impeller butterfly, lightly expand the back of the impeller, and disassemble the impeller.
3. Disassemble the driven coupling half, then remove the key, then disassemble the motor seat and separate it from the support cylinder.
4. Disassemble the pump base and the support cylinder bolts to make them separate.
5. Remove the bushing and bearing from the shaft.
(II), installation of NL mud pump
1. Check all parts for defects. Apply a layer of butter to both sides of the paper pad and add two-thirds of the butter to the bearing.
2, the skeleton oil seal must be filled with butter and put into the pump seat, and then install the bearing.
3. Apply a butter to the 0-ring seal inside the bushing.
4. Put it on the motor base, put the paper pad, the oil retaining ring, and install the shaft and the support cylinder with screws.
5. Put the paper pad, install the bearing, bushing, key, pump seat and impeller. After tightening the impeller nut, turn the impeller by hand and turn it flexibly.
6. Put the paper pad on the pump casing, fix it with screws and install the filter. Then pull the impeller by hand and turn it flexibly.
7. Install the key and the driven coupling on the pump shaft of the NL mud pump, install the key and the active coupling on the motor shaft, and then fix the motor and the motor seat bolt. After installation, the axial clearance between the active coupling and the driven coupling should be 1~1.5 mm.
1Soil slurry pump product name and model
2 caliber cement slurry pump diameter (mm)
3 lift of cement slurry pump (m)
4NL mud pump flow
5NL mud pump motor power (KW)
6NL mud pump speed (r/min)
7NL mud pump voltage [V]
Suction of 8NL mud pump (m)
Does the 9NL mud pump have accessories so that we can choose the right one for you?
Third, when the occasion of use is very important or the environment is more complicated, please provide the design drawings and detailed parameters as much as possible, and we will confirm the selection by our technical experts of Jincheng Pump Valve.
| 型号 | 流量 (m3/h) | 扬程 (m) | 效率 (%) | 电机功率 (kw) | 转速 (r/min) | 液下泵长 (mm) |
| NL50-8 NL50A-8 | 20-30 | 8-9 | 42 | 1.5 | 1450 | 1310 |
| NL50-12 NL50A-12 | 25-38 | 12-14 | 41 | 3 | 1450 | 1310 |
| NL65-16 NL65A-16 | 50-60 | 15-18 | 42 | 5.5 | 1450 | 1430 |
| NL76-9 NL76A-9 | 50-70 | 9-10 | 42 | 3 | 1450 | 1330 |
| NL80-12 NL80A-12 | 80-120 | 11-13 | 56 | 7.5 | 1450 | 1430 |
| NL100-16 NL100A-16 | 80-100 | 15-17 | 61 | 15 | 1450 | 1510 |
| NL150-12 NL150A-12 | 100-150 | 11-13 | 66 | 18.5 | 1450 | 1690 |
| NL150-16 NL150A-16 | 120-180 | 15-20 | 68 | 22 | 1450 | 1690 |
