Type:QBY 10~100
Material :Cast iron, stainless steel, aluminum alloy, engine
Inet diameter： 10~100mm
Outlet diameter： 10~100mm
Flow：0.8~30m3/h
Operating temperature：150°C
Solid particles：Less than 10mm in diameter
Work permit pressure：Less than 0.025MPa
Allow experimental pressure：Less than 0.025MPa
product details:
Overview

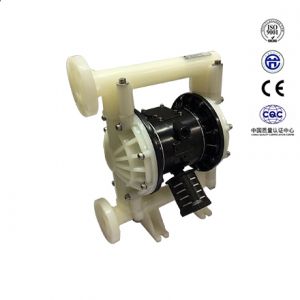

QBY series pneumatic diaphragm pump is a new type of conveying machine, which is the most novel type of pump in China. Compressed air
As a power source, for various corrosive liquids, liquids with particles, high viscosity, volatile, flammable, highly toxic liquids, can
Pumped out. Its performance parameters are similar to WLLDENPUMPS in the Federal Republic of Germany and MARIOWPUMPS in the United States. This unit is currently
Has been formed into a series of production, a total of eight specifications diameter: DN10 ~ DN100. Four materials: cast iron, aluminum alloy, stainless steel,
Engineering plastics. The diaphragm pump uses nitrile rubber, neoprene rubber, fluororubber, and polytetrafluoroethylene according to different liquid media.
Meet the needs of different customers. Since its production, the pump has been used by more than 1,000 domestic petroleum, chemical, electronics, ceramics and textiles.
The system unit adopts and is placed in various special occasions to pump various media that cannot be pumped by conventional pumps, and all have achieved satisfactory results.
effect.
The main purpose
1. Pump peanut butter, kimchi, mashed potatoes, small red sausage, jam, apple pulp, chocolate, etc.
2. Pumping paint, resin and pigment.
3, adhesives and glue, all types can be pumped.
4, a variety of tile, porcelain, porcelain and ceramic glaze.
5. After the oil well is drilled, pump the sediment and grout.
6. Pump various emulsions and fillers.
7. Pumping all kinds of sewage.
8. Use the pump to clear the warehouse for the tanker barge.
9, hops and baking powder slurry, syrup, molasses.
10. Pumping water from mines, tunnels, tunnels, ore dressing, and slag. Pumping cement grout and mortar.
11, a variety of rubber pulp.
12. Various abrasives, corrosives, petroleum and mud, cleaning grease and general containers.
13, a variety of highly toxic, flammable, volatile liquids.
14, a variety of strong acid, strong alkali, strong corrosive liquid.
15, a variety of high temperature liquids, high temperature can withstand 150 ° C.
16. As a pre-stage pressure supply device for various solid-liquid separation devices.
Pneumatic diaphragm pump can pump the flow of liquid, and can transfer some of the flow of the medium, with a self-priming pump, submersible pump, shield pump, mud pump and impurity pump and other transport machinery many advantages.
1. No irrigation and water diversion is required, the suction range is up to 7m, the head is up to 50m, and the outlet pressure is >6kgf/cm2;
2. Spacious flow, good passing performance, allowing maximum particle diameter up to 10mm.Pumping mud, impurities, little wear on the pump;
3. Head and flow can be stepless regulated through the opening of air valve (air pressure regulation between 2-8kgf/cm2);
4, the pump has no rotating parts, no shaft seal, diaphragm will pump the medium in the moving parts of the pump, the working medium is completely separated, the medium will not be transmitted to the outside leakage, so pumping toxic, easy to play or corrosive medium, will not cause environmental pollution and harm personal safety;.
5, no need to use electricity, safe and reliable in flammable, explosive occasions
6, can be immersed in the medium to work;
7, easy to use, reliable operation, stop by simply opening and closing the gas valve, even if long time no movement or due to unexpected sudden stop, the pump will not be damaged because of this, once the overload, the pump will automatically stop, has to protect themselves, when meet back to normal, and can run automatically start;
8, simple structure, less vulnerable parts, the pump structure is simple, easy to install, maintenance, pump conveying medium will not touch the valve, connecting rod and other moving parts, unlike other types of reasons for rotor, piston, gear, blade and other parts of wear and tear and gradually reduce the performance;
9. It can transport relatively viscous liquid (the viscosity is less than 10,000 centipoids);10, the pump (in addition to the valve) without oil lubrication, even idling, there is no impact on the pump, which is a major feature of the pump
