deep-well pump
current location: home PRODUCT deep-well pump

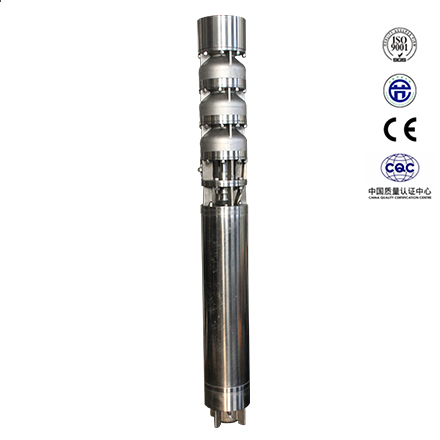

product name:150QJ series deep well pump

Performance range:

Type:2015826191136

Material :stainless steel

Inet diameter:

Outlet diameter:50mm

Flow:Max 50m3/h

Operating temperature:<=80°

Solid particles:Not allowed

Work permit pressure:<=8par

Allow experimental pressure:<=1.5par

Pumping well water. Solar pump. Irrigation pump. Spray pump
Product use Requirement Type description Parameter

    product details:

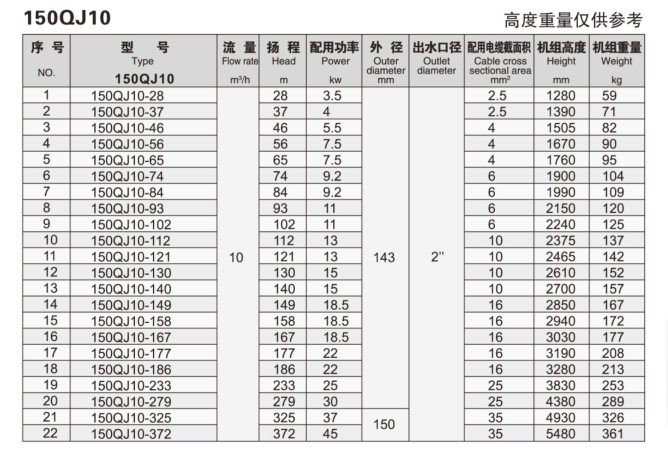

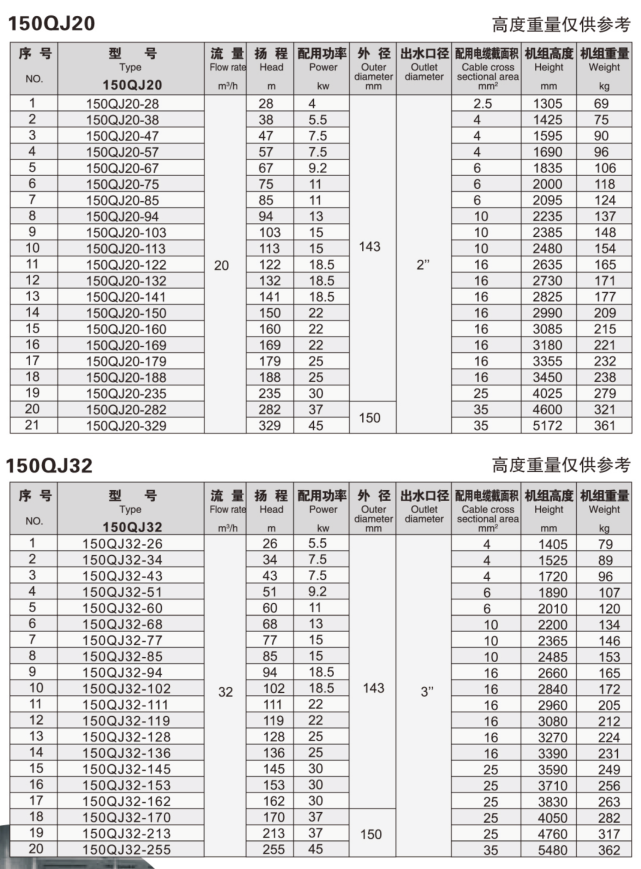

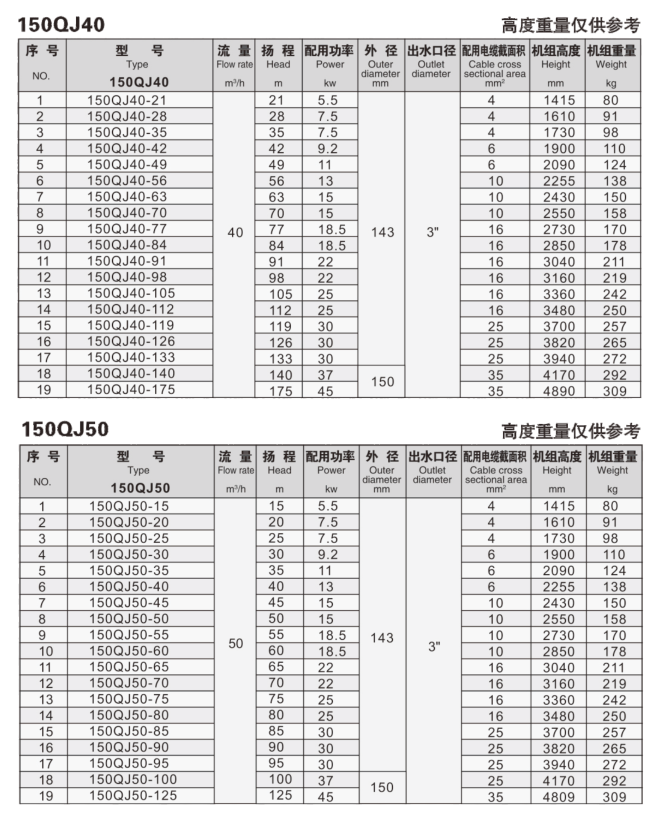

    Product selection table




    material:




    Conveying casing: non-corrosive medium: HT200 cast iron; mild corrosive medium; anti-corrosion coating, chemical treatment, medium corrosive medium: stainless steel 304; strong corrosive medium: stainless steel 316, stainless steel 316L, tin bronze 3861.



    Shaft: According to the material selected for the medium, non-corrosive medium: 45# cold drawn steel strip chrome shaft; medium corrosive medium: 2Cr13, 3Cr13; strong corrosive medium: duplex stainless steel.





    Casing: This is a technical secret.




    Note: This sample covers all models of our recommended corporate standards, and we have all models of the national standard available for stock. Due to space constraints, we will not give a detailed introduction here.






    package




    If the customer does not have special requirements, we usually use wooden boxes. If the total length of the complete set of equipment is less than 3.2m, the package of the pump and motor is 1 box. In contrast, pumps and motors are packaged separately.






    Technical Parameters




    Maximum outerdiameter: 143 meters. Outlet diameter: 65mm / 68mm


    Outlet flange (4 holes) size: center distance 110mm; aperture, 11 mm


    Working condition
    1. Power
    (1) If rated frequency is 50 HZ, rated voltage of motor end shall ensure for 380± 5% v with three phase ac power (need special order if the voltage is 660V).
    (2) Transformer load power should not exceed 75% of its capacity
    (3) When transformer is far from the well, pressure drop of the transmission lines should be considered, if the power is greater than 45 kw, transformer to the wellhead distance should no more than 20 meters, when more than 20 meters, transmission line specification should be 2 levers higher than cable specification, line pressure drop should also be considered.
    2. Water quality
    (1) no corrosive water in general condition
    (2) sand contents0.01% ( mass ratio ).
    (3) PH solution within 6.5-8.5
    (4) chloride ion content less than 400mg/L
    (5) hydrogen chloride contents1.5mg/L
    (6) water temperatures20℃
    3. Wellbore requirements
    (1) straight, smooth, no bump and well tube dislocation, shaft diameter should not less than the corresponding frame size.

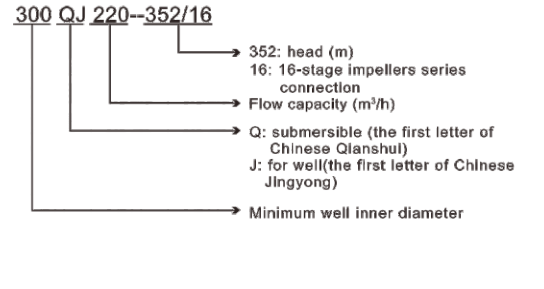

    Model implication
